Solution - Analog Interfaces

These analog functions that are programmed in the welding module will integrate information that are acquired and controlled by the welding control's analog I/O interfaces.

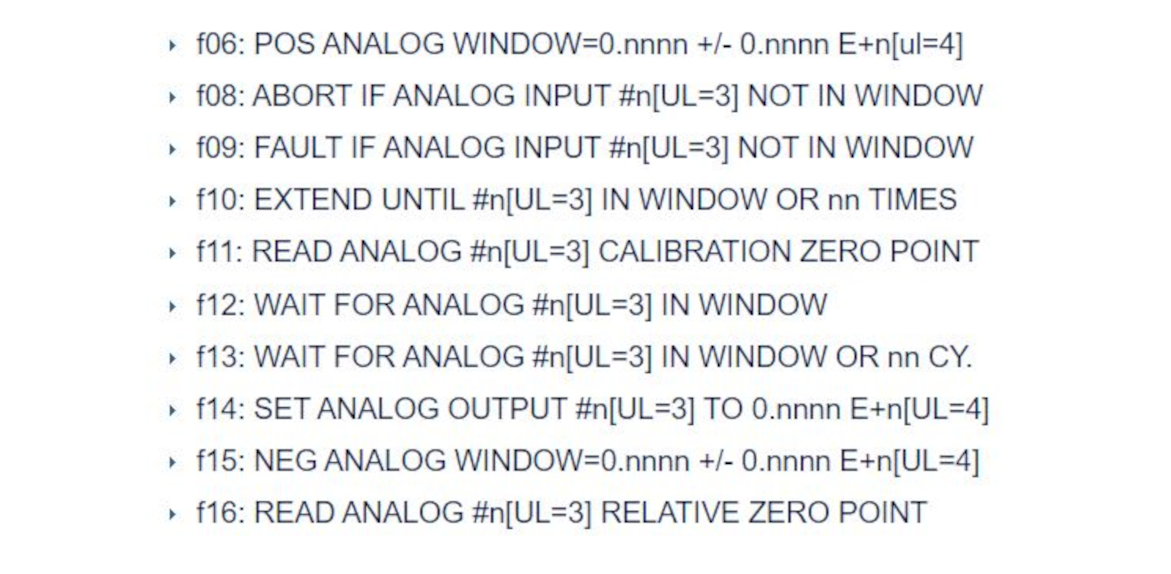

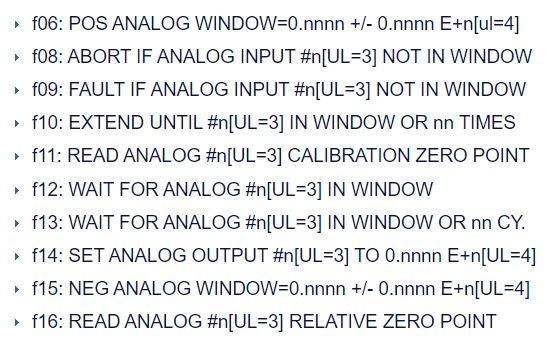

f06: POS ANALOG WINDOW=0.nnnn +/- 0.nnnn E+n[ul=4]

Resistance Welding Presentations Sections

f08: ABORT IF ANALOG INPUT #n[UL=3] NOT IN WINDOW

f09: FAULT IF ANALOG INPUT #n[UL=3] NOT IN WINDOW

f10: EXTEND UNTIL #n[UL=3] IN WINDOW OR nn TIMES

f11: READ ANALOG #n[UL=3] CALIBRATION ZERO POINT

f12: WAIT FOR ANALOG #n[UL=3] IN WINDOW

f13: WAIT FOR ANALOG #n[UL=3] IN WINDOW OR nn CY.

f14: SET ANALOG OUTPUT #n[UL=3] TO 0.nnnn E+n[UL=4]

f15: NEG ANALOG WINDOW=0.nnnn +/- 0.nnnn E+n[UL=4]

f16: READ ANALOG #n[UL=3] RELATIVE ZERO POINT
